Original Straight Bar Plans



Select Print Quality

or





Features


bullet

Seating for 4 - 5 Guests

bullet

Wet Bar Sink

bullet

Keg Cooler

bullet

Formica Preparation Counter

bullet

Under Bar Area For Barware and Glasses

bullet

Designed to Accommodate a Wine Cooler or Refrigerator



Included in our Straight Bar Plans package are 6 detailed dimensional drawings:


bullet

Bar Front View

bullet

Bar Back View

bullet

Bar Side View

bullet

Bar Framework

bullet

Bar Top (Front Detail)

bullet

Bar Top (Rear Detail)

Our Straight Bar Plan has 22 total pages with lots of written information, 6 dimensional drawings, 18 pictures of various aspects of the bar, detailed materials list and detailed cost estimate.

The following Topic Headings from the actual package:
bullet

Introduction

bullet

Final Installations

bullet

Bar Top Construction

bullet

Plumbing

bullet

Bar Framework

bullet

Electrical

bullet

Bar Assembly

bullet

Beer Dispensing Equipment

bullet

Keg Box (4 options)

bullet

Material Suppliers

bullet

Sand and Finish

bullet

Materials List & Cost Estimate

bullet

Installing the Bar Top

bullet

18 Pictures

A few words from one of our thousands of satisfied customers, others can be seen in the Gallery:

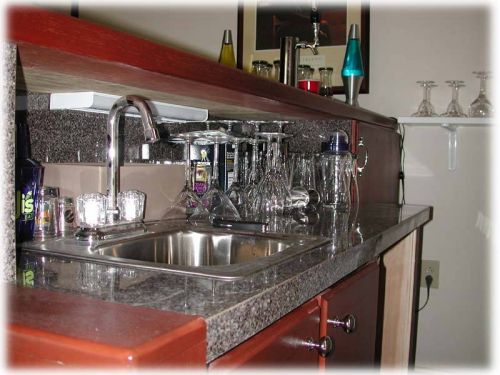

"Upon deciding that I wanted to build a home bar, I did a bit of research and found the plans listed on bar-gear.com. After paying the small fee, I figured out that the feat would be easier that initially expected. Having a bit of cash to spend, I decided to upgrade the bar to cherry wood and opted for the Chicago rail to line the bar. The plans were easy to read and modify, and the bar came out fantastically."

Steve C, Gainesville, FL
